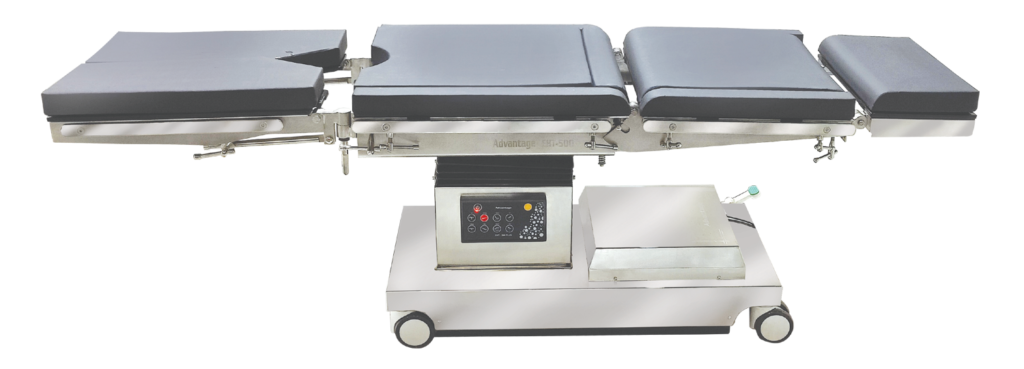

EHT 500 BARIATRIC

The EHT-500 BARIATRIC by ADVANTAGE MEDICAL EQUIPMENTS combines affordability with superior performance, making it an excellent choice for hospitals and healthcare facilities. Its robust construction ensures stability and durability, even during complex bariatric surgeries.

Featuring an advanced Electro-Hydraulic system, the EHT-500 BARIATRIC provides precise and smooth adjustments, allowing surgeons to position patients with optimal comfort and accessibility. The radio-translucent table top further enhances surgical procedures by enabling clear imaging without the need for patient repositioning.

SALIENT FEATURES

The eccentrically positioned five sections Radio-Translucent Top fixed on heavy duty Stainless Steel SS304 Grade Sheet arms without cross members, to optimize image intensifier accessibility for both A/P and Lateral Exposures.
Operating positions of table top i.e. Height adjustment, Back Section, Trendelenburg, Reverse Trendelenburg and Lateral Tilt are quickly and precisely controlled by handheld Remote with backlit symbolic soft touch buttons.
Remote controlled movements are operated by an IMPORTED ELECTRO-HYDRAULIC SYSTEM comprising Hydraulic Motor Pump and Solenoid Valves to assure smooth and quiet movements.
50 mm Table Top Width Extender (4 pieces) with Mattress.
Split Leg Section with Gas Spring having Up/Down and Side Movements.
Interchangeable and detachable Head & Leg sections allow full table length use of image intensifier and use of table in different surgical procedures.
Head and Foot section are operated manually.
Large perineal cut-out for drainage.
A strong and sturdy base incorporating four swivel castors with independent locking system ensures stability and smooth floor movements.
Easy to clean Stainless Steel SS304 Grade Base and Column cover to minimize infection risk.
Stainless Steel SS304 Grade Side Rails and Accessories.

TECHNICAL SPECIFICATION

Table Top Dimension

Width 530 mm (without Side Rails), Length 1960 mm

Height

Minimum 650 mm to Maximum 950 mm (Without Mattress)

Head Section

Up 45 degree, Down 90 degree

Back Section

Up 75 degree, Down 25 degree

Leg Section

Down 90 degree

Trendelenburg/Reverse Trendelenburg

20/30 degree

Side Tilt

20/20 degree

Weight Capacity

300 Kgs

STANDARD ACCESSORIES

L-shaped Anaesthetic Frame: 1 Pc.
Shoulder Support with Pad: 2 Pcs.
Lateral Support with Pad : 2 Pcs.
Padded Arm Board with strap: 2 Pcs.
Table Top Width Extender: 50 mm Width (4 pieces for Back and Middle Section)
Foot Rest with Mattress: 2 pcs.
Restraint Belt: 1 pc.
Leg Strap: 2 Pcs.
Knee Crutches with Pad: 2 Pcs.
50 MM High Density PU Foam Mattress: 1 set.
